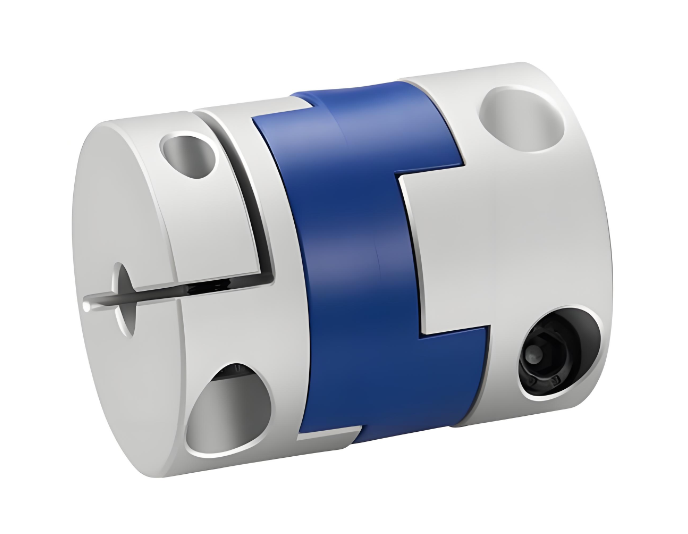

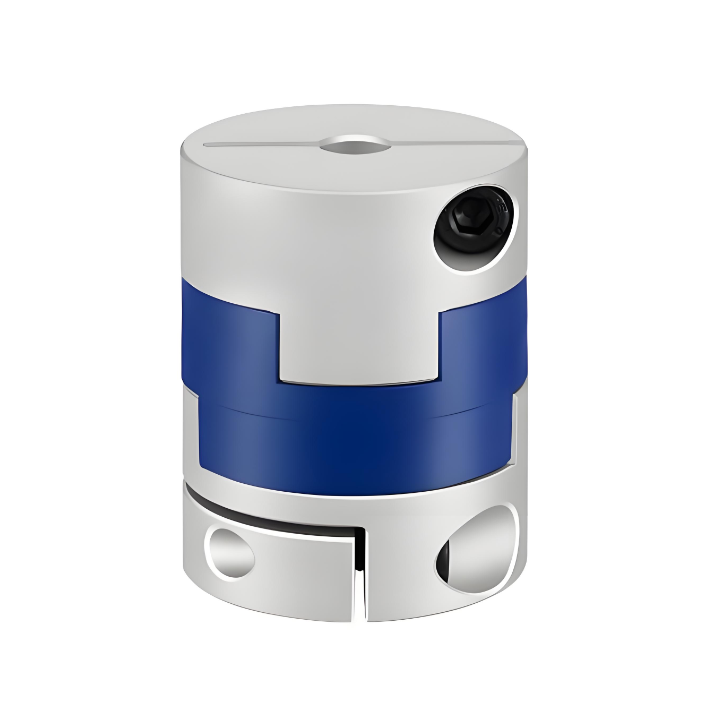

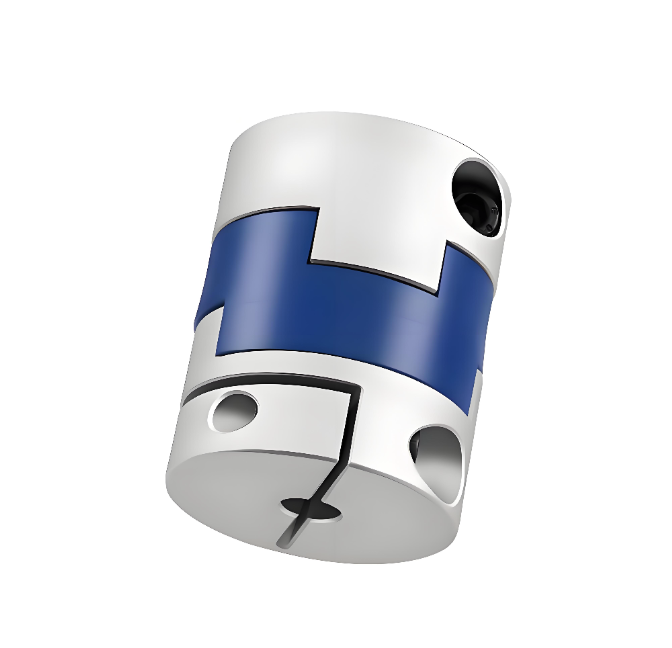

RSK-CPHC Aluminum alloy oldham couplings clamping type magandang wear resistance corrosion resistance at electrical insulation

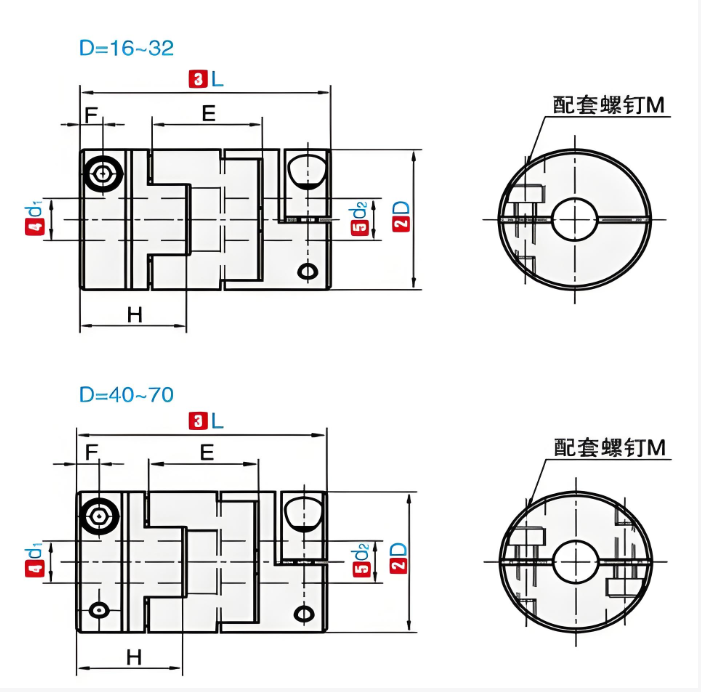

代号

code name

D

L

常用D1/D2 内径尺寸     Karaniwang Inner Diameter(mm)

E

F

H

M

拧紧扭矩

Paninikip ng metalikang kuwintas (N.m)

RSK-CPHC

16

29

4 5 6 6.35

12

3

12.5

M2.5

0.8

20

33

5 6 6.35 7 8

12.7

3.8

14.1

M2.5

0.8

25

39

5 6 6.35   8 9 9.525 10 11 12

17.7

3.9

16.9

M3

1.2

32

45

5 6          8 9 9.525 10 11 12 12.7 14 15 16

20

4.5

20

M4

2.5

40

50

8 9 9.525 10 11 12         14 15 16 17 18 19

20.3

5.5

23

M5

5

44

46

8 9 9.525 10 11 12         14 15 16 17 18 19 20 22

18.4

7

20.7

M5

5

50

53

10 11  12.7 14 15 16 17 18 19 20 22 24

22.35

7.5

24.2

M6

8

50

58

10 11  12.7 14 15 16 17 18 19 20 22 24

22.35

6.3

26.5

M6

8

55

57

10 11  12.7 14 15 16 17 18 19 20 22 24 25 28

25.8

6.3

26.2

M6

8

63

71

14 15 16 17 18 19 20 22 24 25 28 30 32

26.2

7.8

32.8

M8

20

70

77

14 15 16 17 18 19 20 22 24 25 28 30 32 35 38

25.0

7.7

32

M8

20

代号

code name

D

L

额定扭矩   rating torque(N.m)

容许偏心    Payagan ang bias(mm)

容许偏角Allow tilt(∠°)

容许轴向偏差Payagan ang axial deviation(mm)

容许转速Payagan ang RPM

静态扭转钢度Static torsional stiffness(N.m/rad)

惯性矩          Moment of inertia(N.m)

重量Timbang(g)

RSK-CPHC

16

29

0.7

0.8

3

±0.20

9000

30

3.5x10 ^-7

12

20

33

1.2

1.2

7000

58

1.5x10 ^-6

19

25

39

2

1.6

6000

130

3.2x10 ^-6

35

32

45

4.5

2

4800

270

1.5x10 ^-5

67

40

50

9

2.4

3600

520

4.2x10 ^-5

114

44

46

12

2.5

3500

800

4.5x10 ^-5

140

50

53

19

2.6

3000

800

1.0x10 ^-4

190

50

58

19

3

3000

800

1.1x10-4

215

55

57

25

3.2

3000

900

1.3x10-4

260

63

71

33

3

2550

1200

3.5x10-4

455

70

77

56

3.5

2500

1260

4.1x10-4

520
