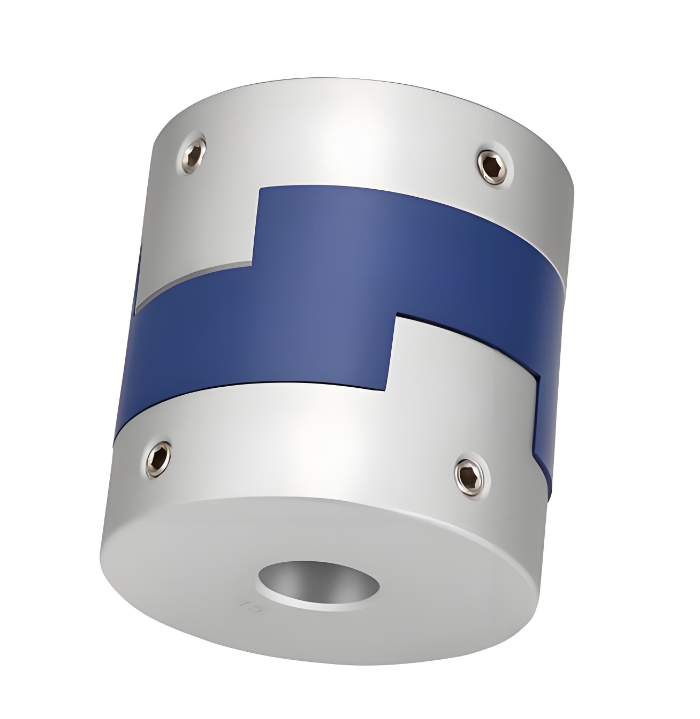

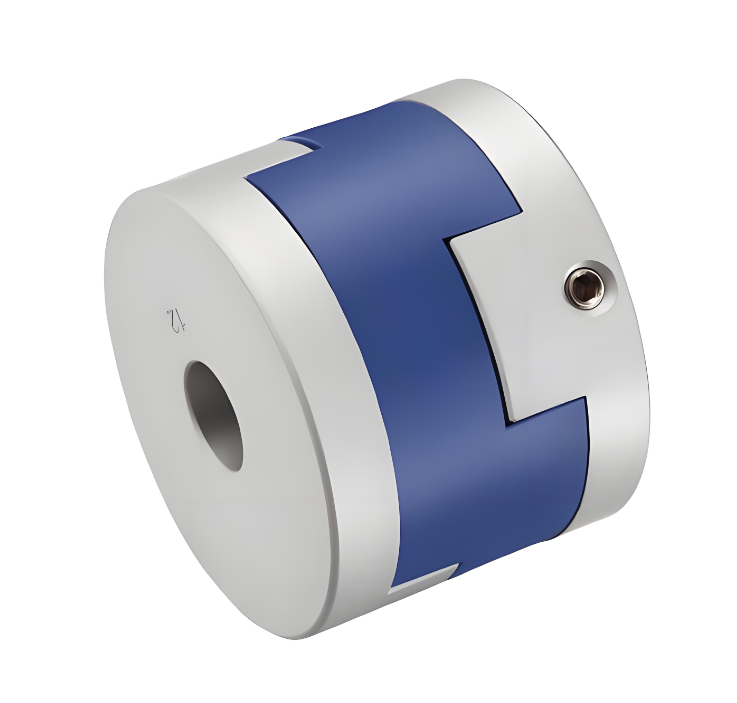

RSK-CPH Aluminum alloy cross slider couplings clamping type naaalis na disenyo madaling pag-install

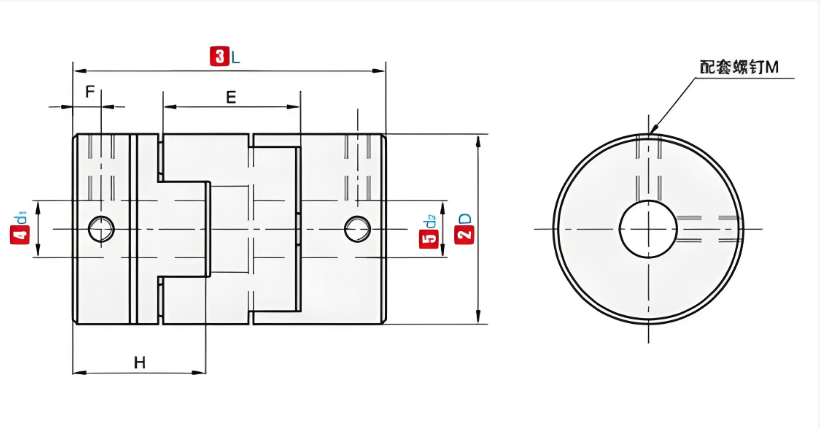

代号

code name

D

L

常用D1/D2 内径尺寸     Karaniwang Inner Diameter(mm)

E

F

H

M

拧紧扭矩

Paninikip ng metalikang kuwintas (N.m)

RSK-CPH

16

18

4 5 6 6.35 7 8

12

3.0

7.1

M3

1.2

20

25

5 6 6.35 7 8 9.525 10 11 12

12.7

3.0

10.1

M4

2.5

25

28

5 6 6.35   8 9.525 10 11 12         14

17.7

2.8

21

M4

2.5

32

33

5 6           8 9.525 10 11 12 12.7 14 15 16

20

3.4

14

M4

2.5

40

32

8 9.525 10 11 12 12.7 14 15 16 17 18 19 20

20.3

3.2

14

M4

2.5

44

46

8 9.525 10 11 12 12.7 14 15 16 17 18 19 20 22

18.4

3.5

20.7

M5

5

50

38

10      12 12.7 14 15 16 17 18 19 20 22 24 25

22.35

3.8

16.5

M5

5

55

57

10      12 12.7 14 15 16 17 18 19 20 22 24 25 28 30 32

25.8

7.8

26.2

M5

5

63

47

14 15 16 17 18 19 20 22 24 25 28 30 32

25.8

6.0

21

M6

8

70

77

16 17 18 19 20 22 24 25 28 30 32 35 38 40

25

13.5

36.5

M8

20

代号

code name

D

L

额定扭矩     rating torque(N.m)

容许偏心      Payagan ang bias(mm)

容许偏角Allow tilt(∠°)

容许轴向偏差Payagan ang axial deviation(mm)

容许转速Payagan ang RPM

静态扭转钢度Static torsional stiffness(N.m/rad)

惯性矩          Moment of inertia(N.m)

重量Timbang(g)

RSK-CPH

16

18

0.7

0.8

3

±0.20

9000

30

3.0x10 ^-7

6

20

25

1.2

1.2

7000

58

3.0x10 ^-7

18

25

28

2

1.6

6000

130

2.8x10 ^-6

25

32

33

4.5

2

4800

270

8.9x10 ^-5

44

40

32

9

2.4

3600

520

2.1x10 ^-5

81

44

46

12

2.8

3500

560

3.8x10 ^-5

136

50

38

19

2.6

3000

800

6.0x10 ^-5

142

55

57

22

3.3

2800

795

9.9x10 ^-5

255

63

47

33

3

2500

1200

2.1x10 ^-4

320

70

77

56

3.8

2500

1260

3.9x10 ^-4

445
