Name: RSK BHJC Ball cage CV universal joint straight groove type na nagli-link sa tooth flange hub na ginagamit para sa metalurhiya
Rating: 5 (99 reviews)

Detalye

Nagpapatakbo angle ≤ 10°

Payagan ang pagpapalawak ±20~±60

Pag-uugnay sa uri ng ngipin Flange

Pangunahing Pagtutukoy

Uri	Nominal Torque(N·m)	Pagkapagod Torque(N·m)	Pinahihintulutan Operating anggulo a	Ang pagpapalawak△	ang Sandali ng Inertia GD²J×10⁻³(kg·m²)
					L=1000		Bawat 100 more ng haba
					Solid baras	guwang baras	Solid baras	guwang baras
BHJ120C	11000	4000	12°	±20	45	49	0.56	4.12
BHJ140C	13300	5000	12°	±20	63	71	0.70	4.86
BHJ150C	17400	6300	12°	±25	74	82	1.65	5.48
BHJ160C	24800	9000	12°	±25	105	110	1.85	8.49
BHJ180C	37500	13700	10°	±30	185	210	2.44	9.69
BHJ200C	44000	16000	10°	±30	330	360	3.48	15.6
BHJ220C	58000	21000	10°	±30	500	550	7.10	20
BHJ240C	80000	31000	10°	±35	760	820	8.33	31.8
BHJ260C	110000	40000	10°	±35	1050	1120	10.5	50
BHJ280C	132000	48000	10°	±35	1580	1700	13.9	56
BHJ300C	150000	66500	8°	±38	2150	2300	19.4	83
BHJ330C	210000	84000	8°	±40	3500	3800	27.9	187
BHJ375C	269000	110000	8°	±50	5200	5900	44.4	220
BHJ400C	385000	120000	8°	±50	8200	9100	64.3	418
BHJ440C	450000	154000	8°	±50	12100	13000	123	479
BHJ490C	625000	250000	8°	±50	15530	16400	150	576
BHJ550C	887500	355000	8°	±60	27180	28500	270	685
BHJ620C	1250000	500000	8°	±60	48920	50000	480	735

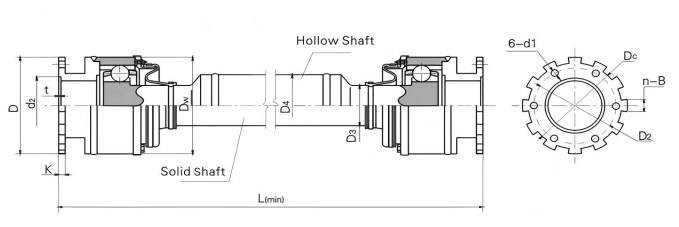

Ang mga pangunahing sukat

Uri	D	K	d₂	t	D₃	D₄	D₂	Dc	n-B	d₁	L(min)
Uri	D	K	d₂	t	D₃	D₄	D₂	Dc	n-B	d₁	Solid baras	guwang baras
BHJ120C	120	10	65 ^0.074	3.5	47	76	92	105	12-14	11	400	600
BHJ140C	140	10	80 ^0.074	3.5	62	89	110	124	12-16.5	11	450	650
BHJ150C	150	12	85 ^0.087	3.5	65	89	115	132	12-17.5	13	500	700
BHJ160C	160	12	95 ^0.087	5	68	102	125	142	12-19	13	550	750
BHJ180C	180	13	110 ^0.087	5	70	114	143	160	18-14	13	600	800
BHJ200C	200	15	120 ^0.10	5	80	127	158	178	18-16	15	650	850
BHJ220C	220	18	135 ^0.10	5	92	127	175	196	18-17	15	700	900
BHJ240C	240	20	140 ^0.10	6	99	152	192	215	18-19	17	750	950
BHJ260C	260	22	160 ^0.10	6	110	168	210	232	18-20.5	17	800	1000
BHJ280C	280	25	170 ^0.10	8	124	180	225	250	18-22	22	850	1050
BHJ300C	300	25	180 ^0.115	8	126	203	242	268	24-18	22	900	1100
BHJ330C	330	28	210 ^0.115	10	135	219	275	300	24-20	22	950	1150
BHJ375C	375	30	240 ^0.115	10	155	270	308	338	24-22.5	26	1000	1200
BHJ400C	400	32	260 ^0.13	12	170	270	330	360	24-24	26	1050	1250
BHJ440C	440	35	270 ^0.13	12	200	320	360	395	24-26.5	32	1100	1300
BHJ490C	490	38	285 ^0.13	13	225	340	395	430	24-28	32	1200	1400
BHJ550C	550	42	315 ^0.14	13	255	360	440	495	24-28	34	1350	1450
BHJ620C	620	42	350 ^0.14	15	290	380	490	560	24-31	34	1500	1700

Ang katangian at paggamit

Ang axial profile ng steel balltrack ay tuwid. Ang pagsasaayos ng distansya ng pag-install at ang axial expansion ay naisasakatuparan sa pamamagitan ng tuwid na landas.
Ang joint na ito ay pangunahing ginagamit para sa pagmamaneho ng petroleum machinery at metallurgical machinery.

Ang sumasagisag na halimbawa:BHJ120C1000

BHJ: Uri ng BHJ

120: Ang detalye ay 120

C: C Uri

1000: Ang haba ay 1000
